CALL Overview

1Learning Outcomes¶

• Identify the four steps of translating and running a program: Compile, Assemble, Link, and Load (CALL).

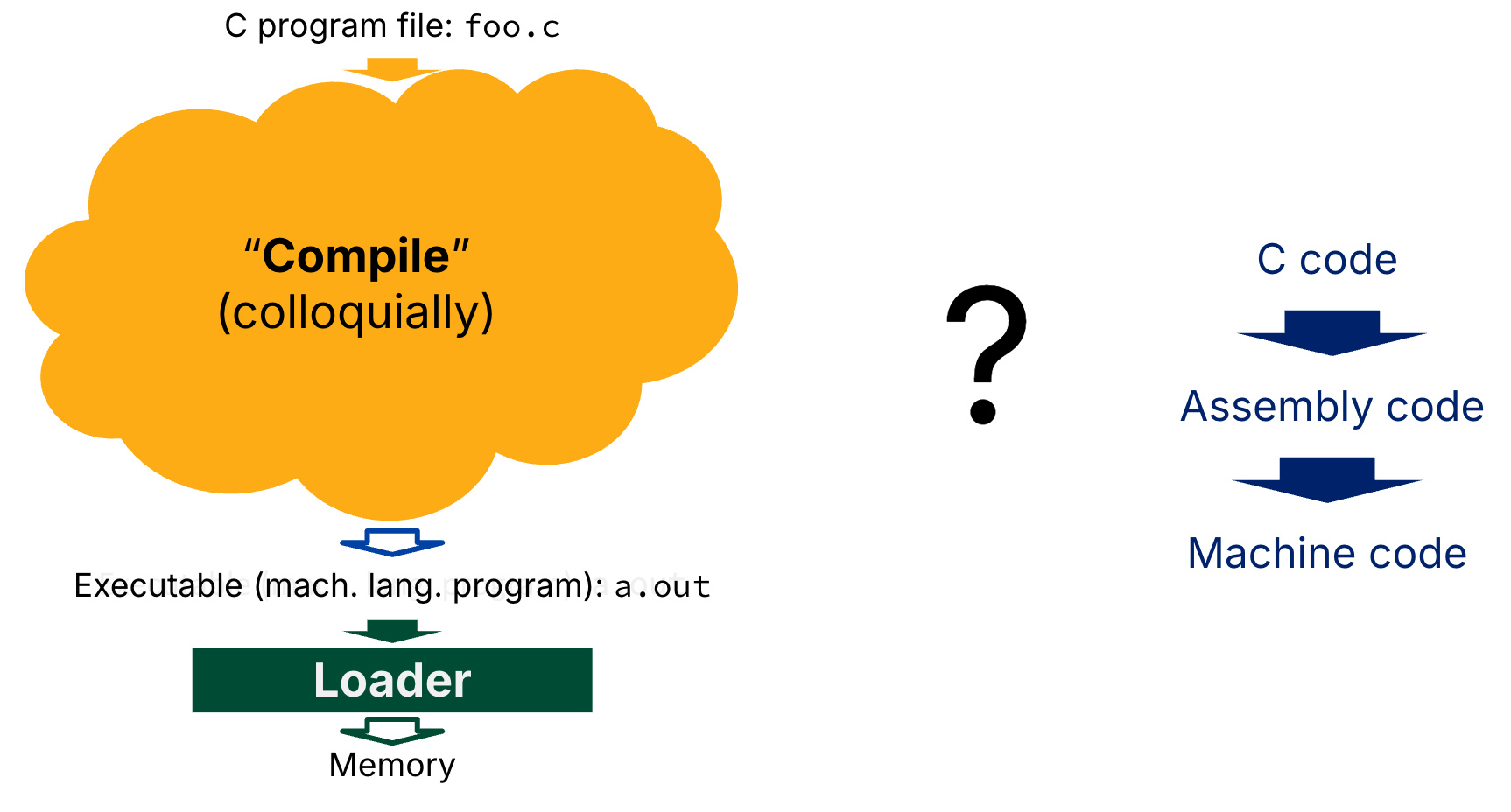

In this lecture, we will learn how to run a program. We will give more details to our colloquial definition of compiling C code to a binary executable:

Let’s come back to The Great Idea of Abstraction. Today, we will discuss everything above the orange ISA line–how to go from a high-level language like C to a lower-level assembly language, and then finally to the lowest-level machine code.

2Translate and Run a Program¶

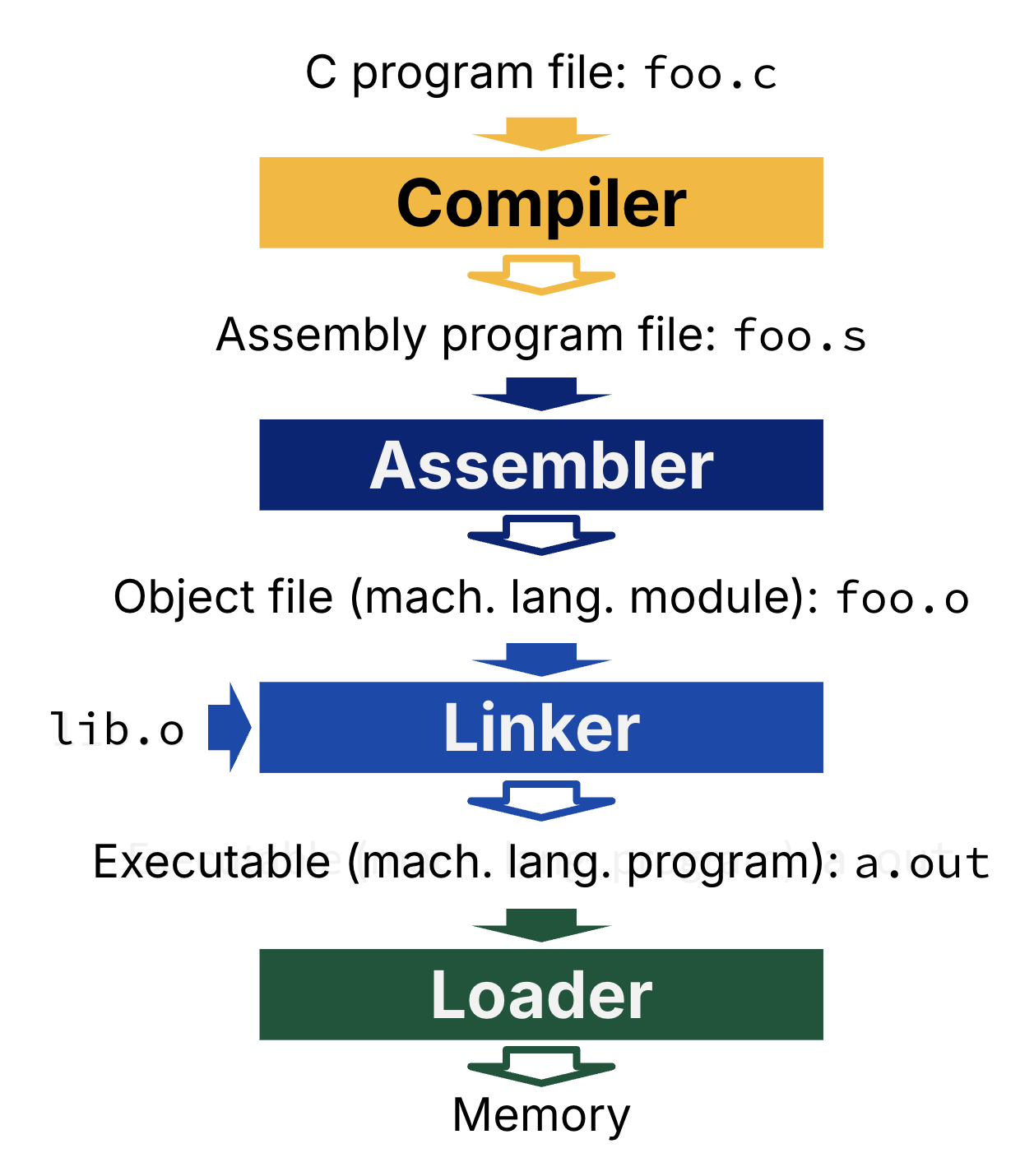

We will spend today discussing Figure 2.

The process of translating a C program foo.c from the high-level C code to a machine executable a.out is actually three steps (Compile, Assemble, Link), plus an additional step for running the program (Load). Notably, the first three steps spell CAL–Go Bears!!!

The high-level details are shown in Table 1:

2.1Compiler¶

The compiler translates C code to assembly code. Generally, we use a program like gcc to compile programs for us. In this class, we’ve practiced hand-authoring RISC-V with the Venus simulator.

Importantly, the compiler assembly output can include pseudo-instructions. As mentioned in an earlier section, pseudoinstructions (e.g., mv t1 t2) make it much easier to write and think about assembly-level programs. Downstream, the assembler then translates these pseudoinstructions into real instructions (e.g., addi t1 t2 0) in the ISA.

2.2Assembler¶

The assembler translates assembly code to machine modules. It translates pseudoinstructions to real instructions and produces an object file. The assembler uses assembly directives to produce the object file, which contains portions of an executable’s text segment, data segment, and more.

2.3Linker¶

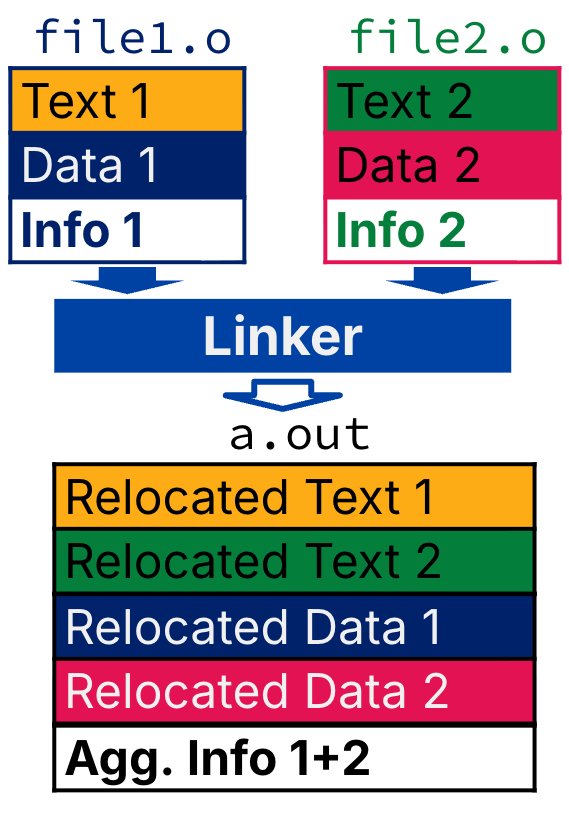

The linker patches together multiple object modules to produce an executable. It resolves all the assembler’s “TODO items,” including relocating everything for the final executable:

1. Put together text segments from each .o file.

2. Put together data segments from each .o file, then concatenate this onto the end of Step 1’s segment.

3. Resolve references, i.e., addresses that the assembler wasn’t able to resolve.

The linker enables separate compilation of different parts of the program. Importantly, it supports not recompiling larger libraries. For example,. C standard libraries (e.g., stdio) are part of the Linux source, which is over 20 million lines of code. Because of the linker, recompiling a simple foo.c does not require recompiling stdio :-)

2.4Loader¶

The loader does several things to run a program. To learn more, we strongly recommend taking an upper-division class like CS 162: Operating Systems!

1. Load program into a newly created address space in memory.^[1]

• Read a.out file header for sizes of text, data segments.

• Create new address space for program large enough to hold text and data segments, along with a stack segment.

  • Copy instructions, data from executable file into new address space.

  • Copy arguments passed to the program onto the stack.

2. Initialize machine registers. Clear registers, and assign stack pointer sp to the assigned address of the first free stack location.

3. Jump to start-up routine: Copy program arguments from stack to registers, set program counter pc.

4. Run the program. If main routine returns, terminate program with exit system call.
