Adder/Subtractor

1Learning Outcomes¶

• Implement an n-bit adder as a cascade of 1-bit adders.

• Recall that XOR is a conditional inverter and can be used with SUB to augment the adder block into an adder/subtractor block.

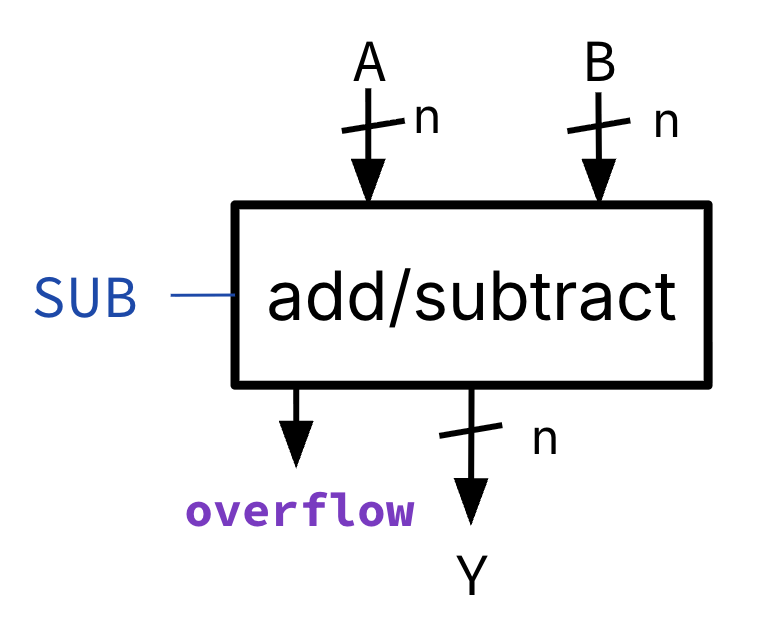

Figure 1 shows the add/subtract block used in our basic ALU:

This single circuit is capable of addition and subtraction:

• two 32-bit wide data inputs A and B

• a 1-bit wide control input SUB.

• a 32-bit wide data output Y

• a 1-bit wide output overflow.

When SUB=1, the circuit performs the subtraction A - B. When SUB=0 the circuit performs the addition A + B.

The “special” output, labeled overflow signals for integer overflow. Upon performing an addition or subtraction, this output will be a 1 if the result is too large to fit in 32 bits. We return to this fact later.

To design our adder/subtractor circuit, we will start out by studying the design of an adder circuit, then later augment it to also perform subtraction.

2Cascading Intuition¶

One strawman^[1] method for arriving at the detailed gate-level circuit for the adder would be to follow the procedure we learned in the previous chapter^[2]. Unfortunately, that technique is only effective for very narrow adders (e.g., 1-bit or 2-bit wide), because the size of the truth table is too large for wider adders.

Therefore, we turn to modular design: Find a way to break the design up into smaller more manageable pieces. We will design the smaller pieces individually, then wire them together to create the entire wide adder.

Consider adding two 4-bit numbers A= a₃a₂a₁a₀ and B= b₃b₂b₁b₀:

Example, where A is 1011 and B is 0001:

31-bit Adder¶

Addition in the i^th spot produces two outputs:

• Result bit, i.e., y_i

• Carry bit (e.g., c_i+1 which feeds into the addition in the (i+1)^th spot addition. We name a carry bit according to the stage to which it is an input.

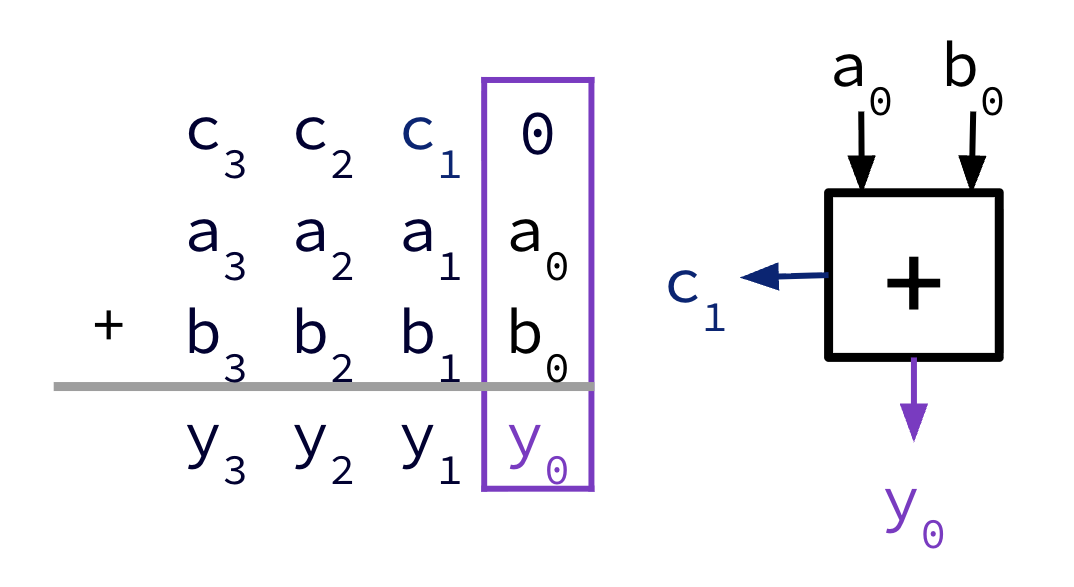

3.1Zero-th spot¶

We build our intuition for implementing a 1-bit adder by considering the adder in the zero-th spot (least significant stage). This computes the least significant result bit, $\texttt{y}_{\texttt{0}}$, and the carry-out bit of the least significant stage, $\texttt{c}_{\texttt{1}}$.

By inspection of the truth table in Table 1, we can directly write the logic equations for this stage^[3].

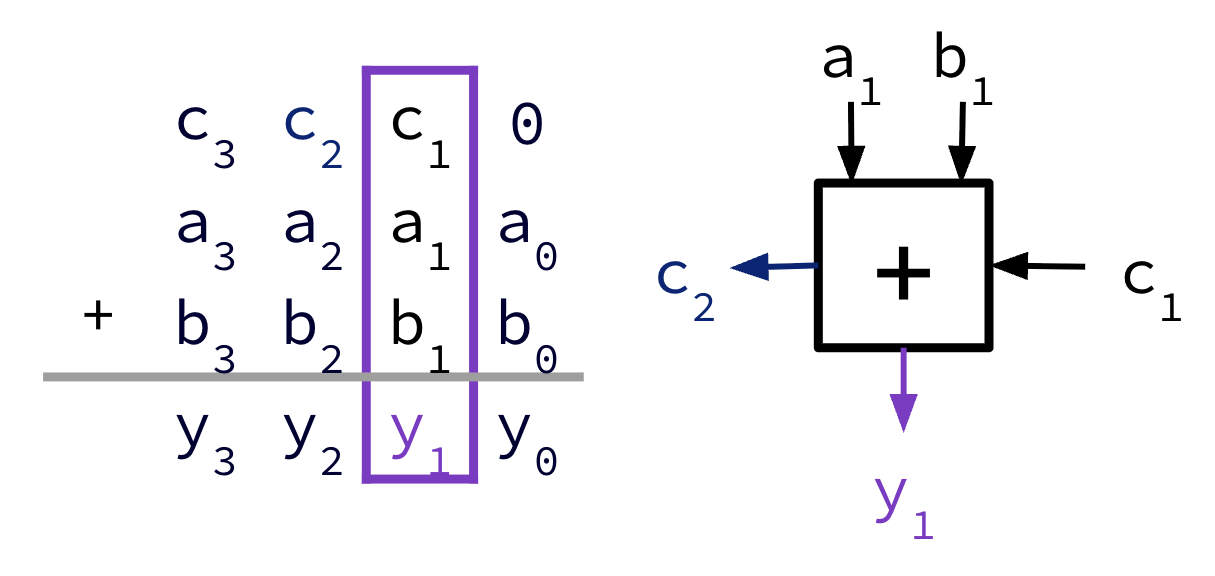

3.2First spot¶

Next, consider the logic for the next significant stage (and all subsequent stages):

Even though the truth table is larger, the logic equations are still straightforward to write—at least, if we remember what we learned from previous sections.

3.3General case¶

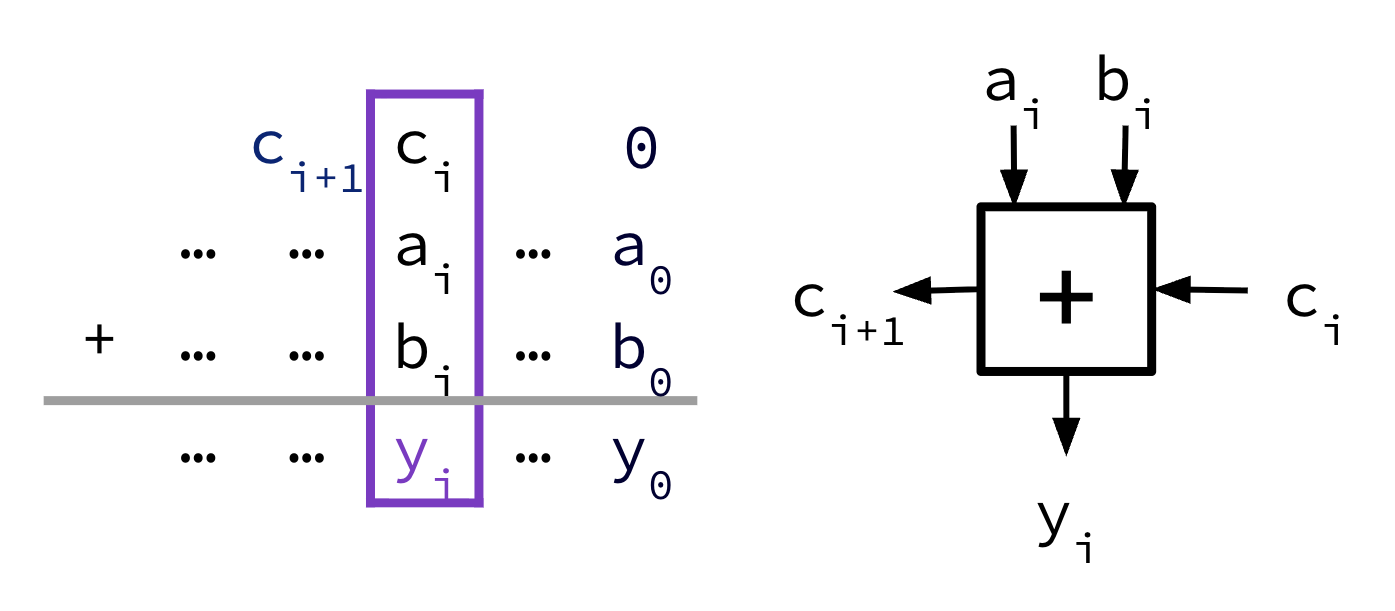

Let us finally consider the logic for the i^th spot, where $i = 0, ..., n-1$ for an $n$-bit wide addition. We will encapsulate the operations of one stage, or column, of the add operation into a small block, shown in Figure 4:

You can think of this block as a 1-bit adder. It’s official name is a full-adder cell, but most people confuse this with an n-bit adder, which it certainly is not.

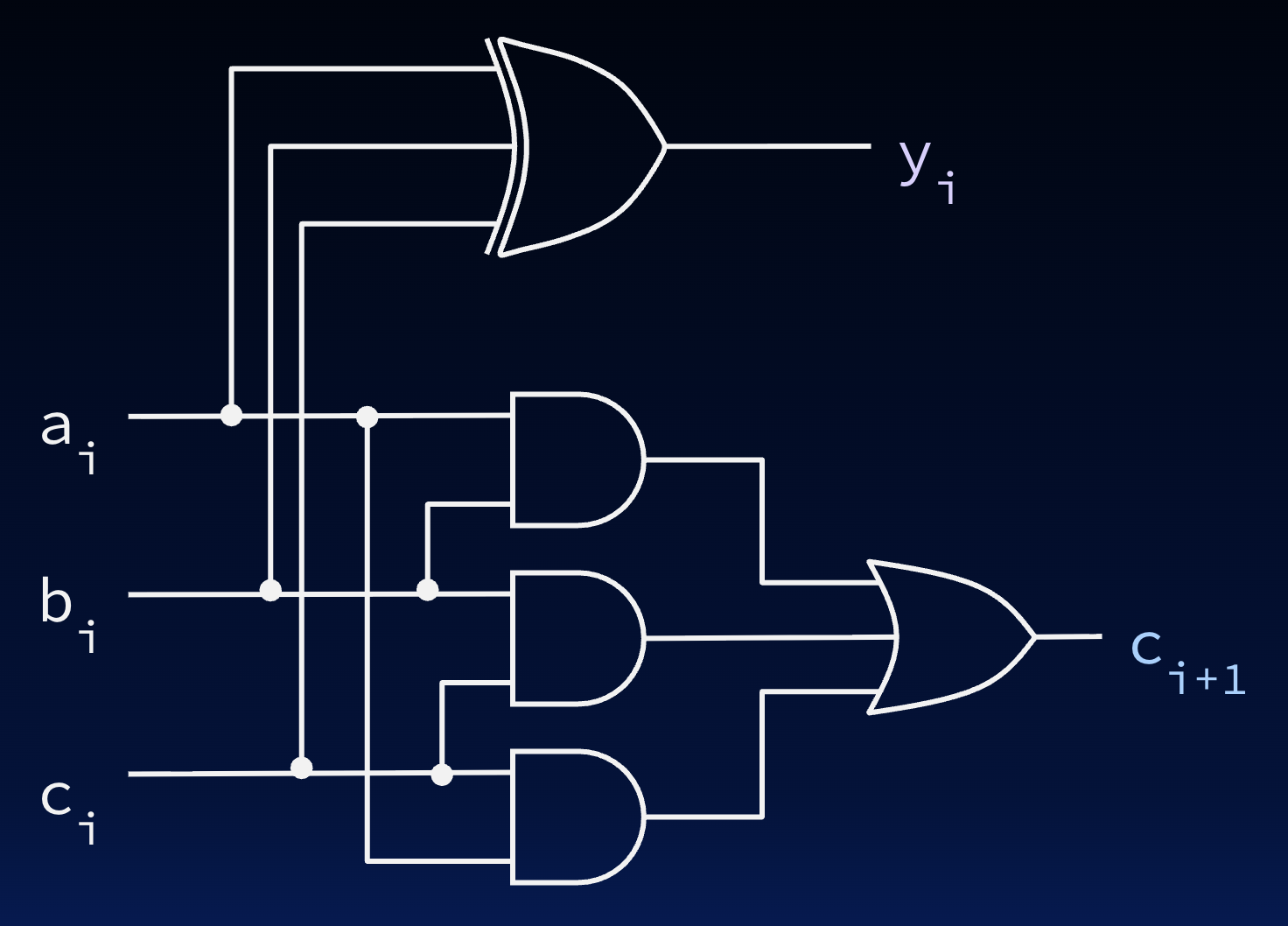

The 1-bit adder’s gate-level circuit diagrams for its internals are in Figure 5. The logic equation can be pattern-matched from our earlier discussion and is Equation (2).

$$\begin{aligned} \\ \\ \\ \begin{aligned} \texttt{y}_{\texttt{i}} &= \texttt{XOR}(\texttt{a}_{\texttt{i}}, \texttt{b}_{\texttt{i}}, \texttt{c}_{\texttt{i}}) \\ \texttt{c}_{\texttt{i+1}} &= \texttt{MAJ}(\texttt{a}_{\texttt{i}}, \texttt{b}_{\texttt{i}}, \texttt{c}_{\texttt{i}}) \\ &= \texttt{a}_{\texttt{i}}\texttt{b}_{\texttt{i}} + \texttt{a}_{\texttt{i}}\texttt{c}_{\texttt{i}} + \texttt{b}_{\texttt{i}}\texttt{c}_{\texttt{i}} \end{aligned} \\ \\ \\ \end{aligned}$$

(2)

4N-bit Adder¶

The next step in the design of our adder circuit is to wire together a collection of our 1-bit adders to create an n-bit adder. All we need to do is to wire the carry-out output of one stage into the carry-in input of the next, from least significant to most, as shown in Figure 6:

Inputs are applied at the top and after some delay, associated with the delay through the logic gates for the blocks, and the delay of the carry from stage to stage, the final result appears at the bottom.

What to do with carry-in bit c₀? For the adder to produce the correct result, convince yourself that c₀ must be connected to a source of logic 0 (GND in the circuit). But we will find something more interesting to do for c₀ when we discuss the subtractor below.

What to do with carry-out bit c_n? The carry-out from the most significant stage, c_n, can be used as the (n+1)^th bit of the result (remember, adding two n-bit numbers could result in a (n+1)-bit result). However, in most uses for an adder, we must generate an n bit result. For instance, RV32I registers can only store 32 bits, so the result of the add instruction must be a 32-bit number. In this case, we must signal overflow, which we discuss next.

4.1Overflow¶

As discussed in our initial adder/subtractor design, an overflow output must be generated to indicate when the result cannot fit into n bits. Recall from an earlier section that overflow can occur when adding a pair of negative numbers or when adding a pair of positive numbers.

We can make the following observations about adds in this circuit. Remember, the most significant stage is the stage associated with the sign bit, i.e., stage n-1.

• If there was a carry in to the most significant stage, but no carry out of that stage, then A and B were both positive and the result of the addition overflowed, erroneously generating a 1 in the sign bit position.

• If there was a carry out of the most significant stage and no carry out that stage, then A and B were both negative and the result of addition overflowed.

• In all other cases the value of the carry in to the most significant stage matches the carry out, then there was no overflow.

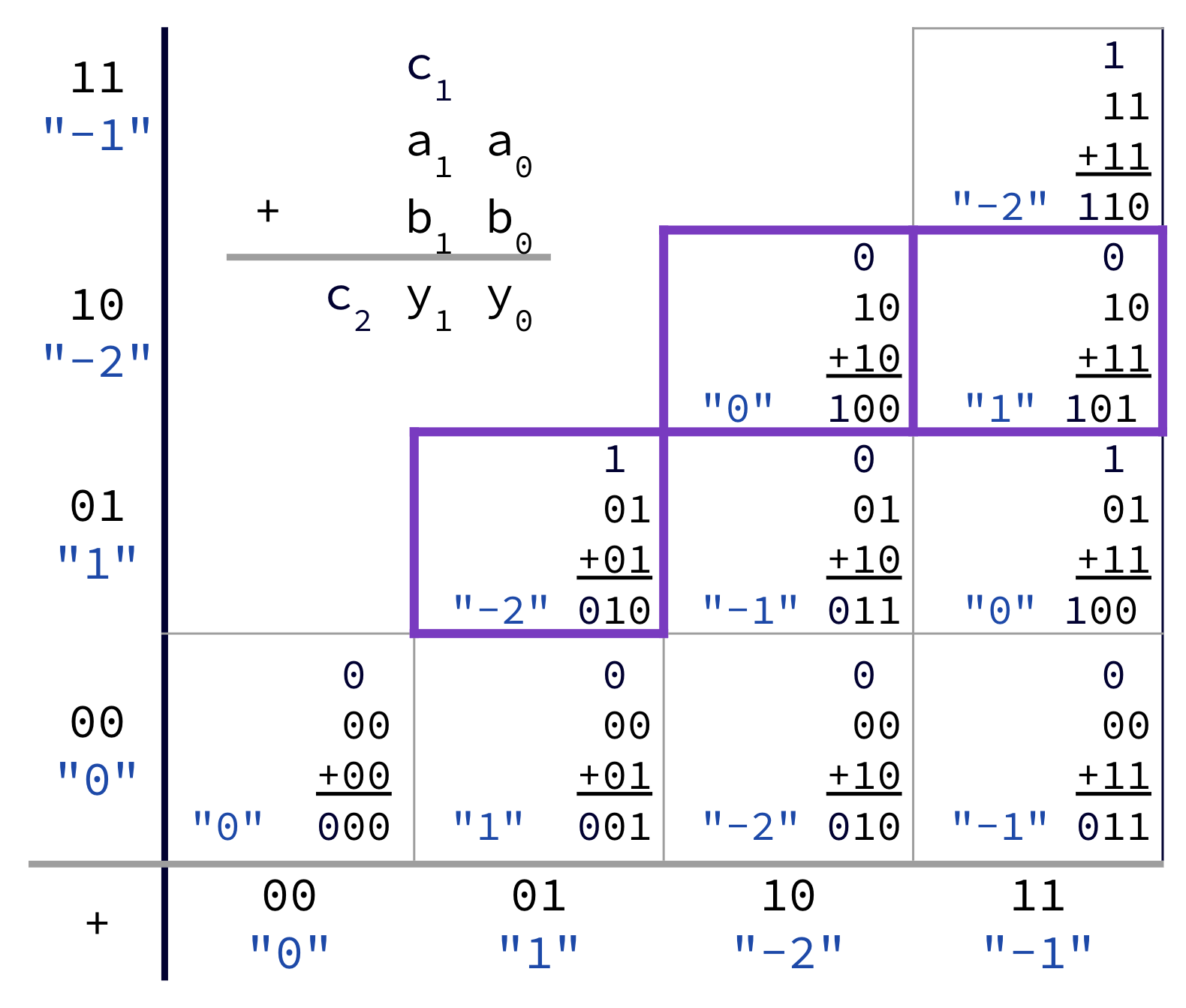

We demonstrate this intuition in Figure 7 for a 2-bit adder.

Show Explanation of Figure 7

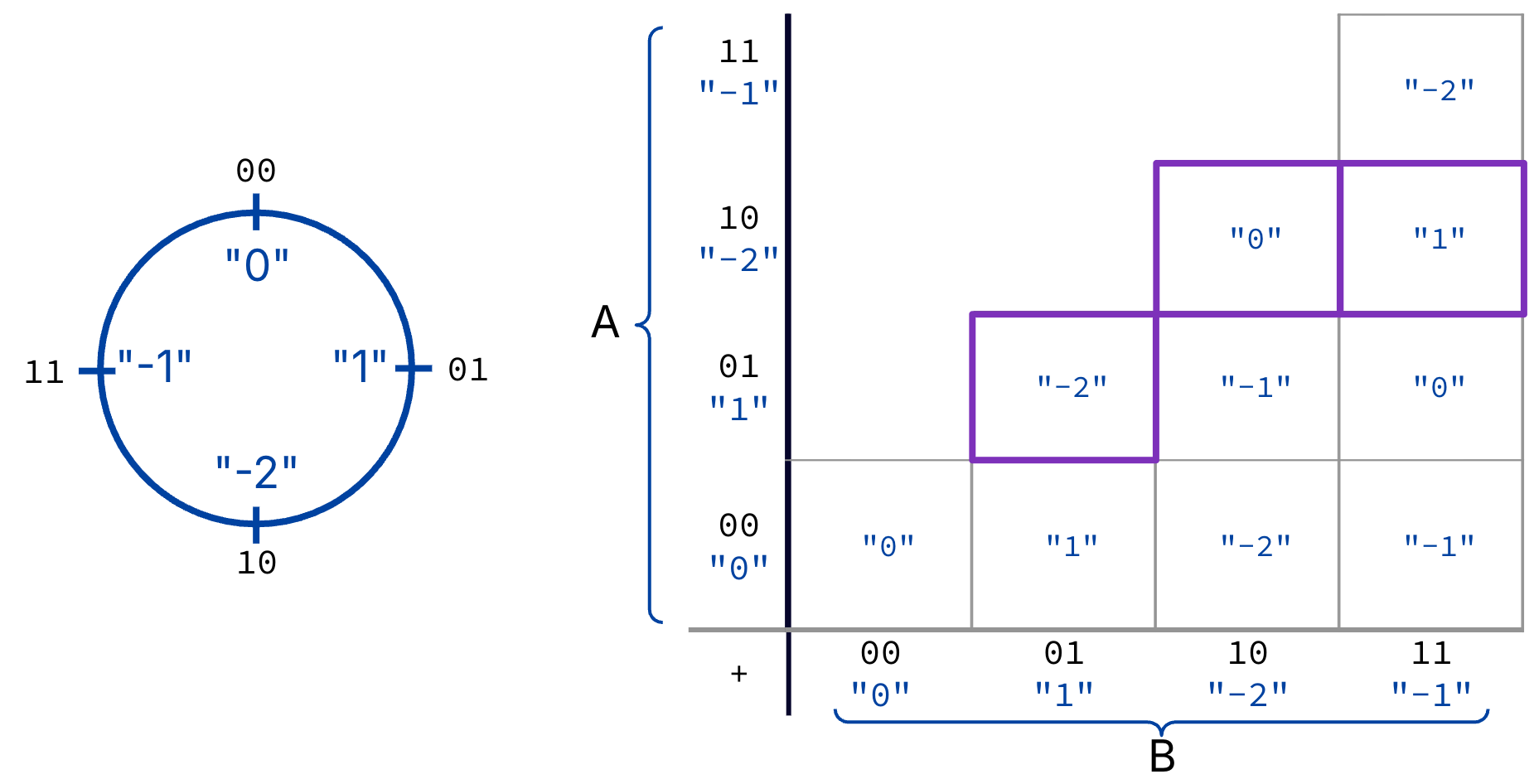

Figure 8 provides a high-level idea of addition with 2-bit numbers A and B. Keep the integer wheel on the left in mind when adding integers. Keep the integer wheel in mind when adding integers.

Three overflow results are boxed in Figure 7:

• $1 + 1 = -2$, not 2

• $-2 + (-2) = 0$, not -4

• $-1 + (-2) = 1$, not -3

The original Figure 7 shows the bit patterns of these three additions (among others), resulting in the three observations in this section.

Based on these observations, we can design a simple circuit that generates the overflow output signal by comparing the carry-in and carry-out of stage n-1. A simple circuit that indicates when two signals are different in value is the XOR gate.

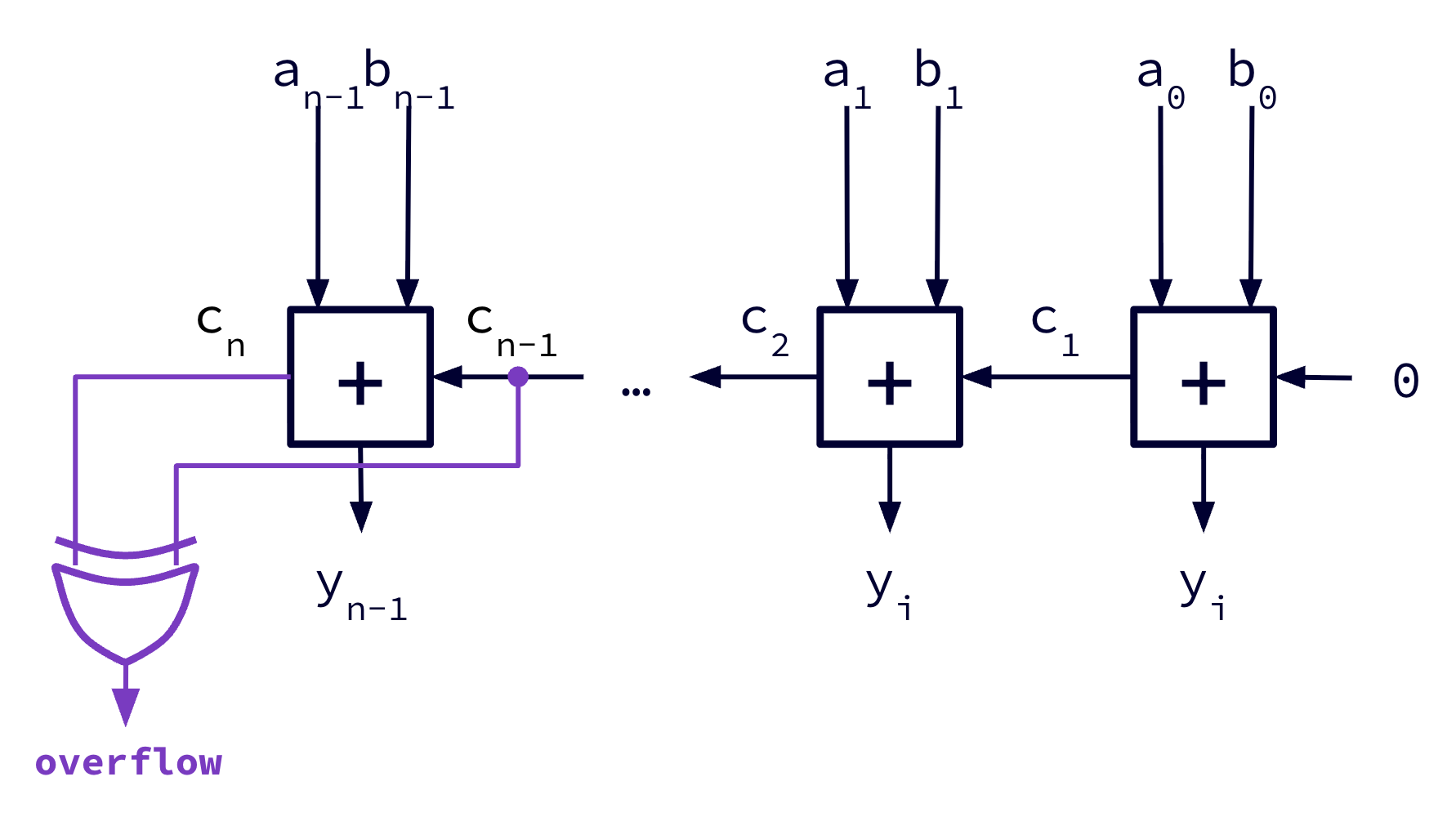

Figure 9 shows our full n-bit adder:

5Subtractor¶

We mentioned earlier that addition and subtraction are closely related, and therefore we would expect that their respective circuits are similar and could serve dual both purposes.

As discussed in our initial adder/subtractor design, a control bit SUB signals if the add/subtract block should perform subtraction. We note the following holds, due to two’s complement:

• When SUB=0 the circuit performs the addition A + B.

• When SUB=1, the circuit performs the subtraction A - B. The following statements are erquivalent:

  • Compute A + (-B), where B is the two’s complement.

  • Compute A + ~B + 1. This is the definition of two’s complement: invert bits and add 1.

This last observation gives us a very clean way to augment our adder circuit to be a combined adder and subtractor:

1. Add 1 to the result.

2. Invert the bits of B.

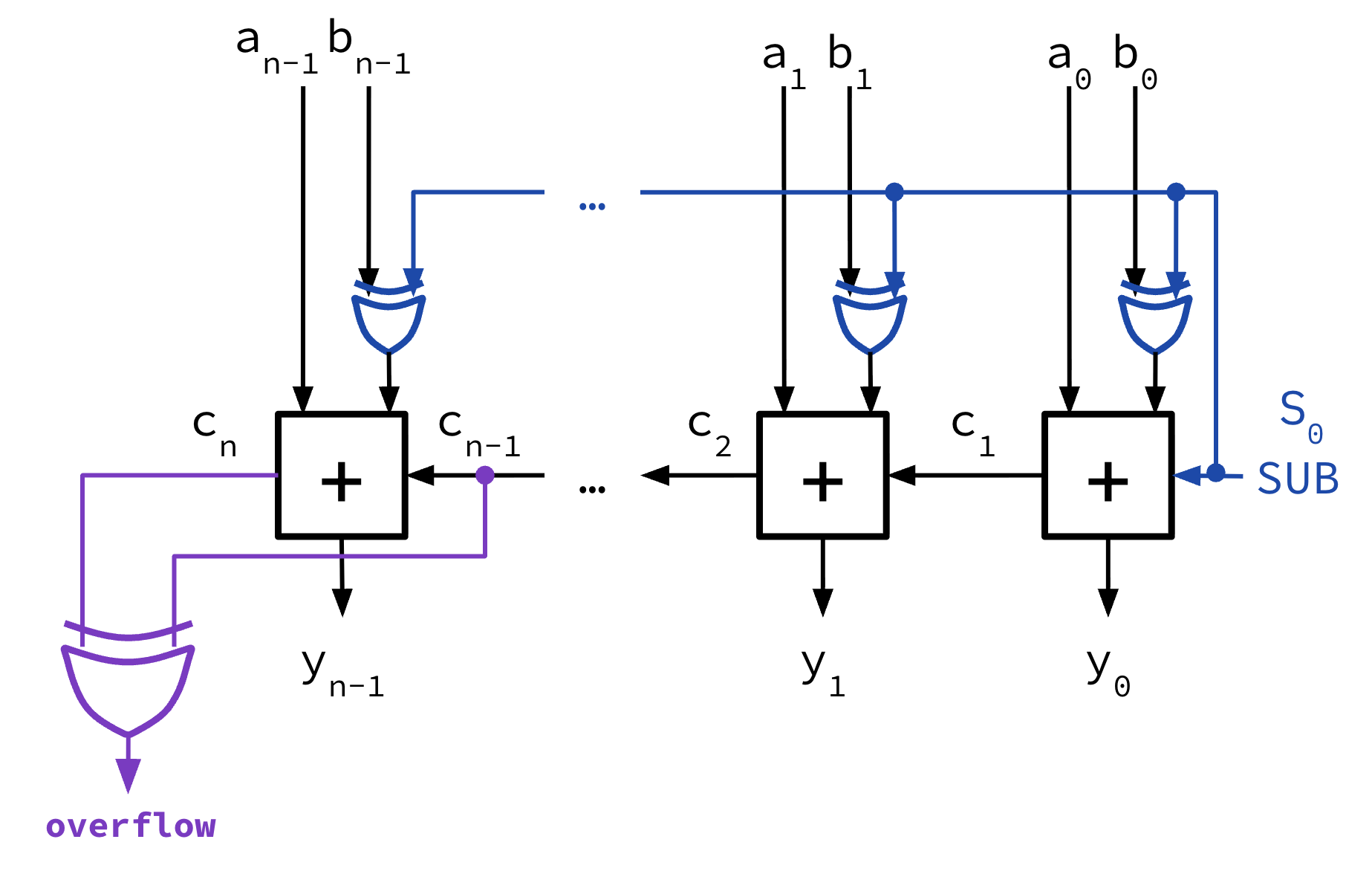

The augmented adder design is shown below. When the input SUB is 1 the block performs subtraction, when SUB=0 the block performs addition.
