1Learning Outcomes¶

Design a basic Arithmetic Logic Unit (ALU).
Use mux circuits in the ALU.

🎥 Lecture Video

Most processor implementations include a special combinational logic block called an arithmetic logic unit (ALU). In RISC-V, the ALU is used to compute the result in the R-type instructions, such as, add, sub, and, or addi, ori, etc.

2ALU Block¶

We are going to consider the design of a simpler version of the ALU than the one in our RISC-V processor. Ours will include only four basic functions:

ADD
SUB
(bitwise) AND
(bitwise) OR

This ALU is implemented as a combinational logic block in Figure 1:

two 32-bit wide data inputs, A and B;
a 32-bit wide data output, R; and
a 2-bit wide control input, S

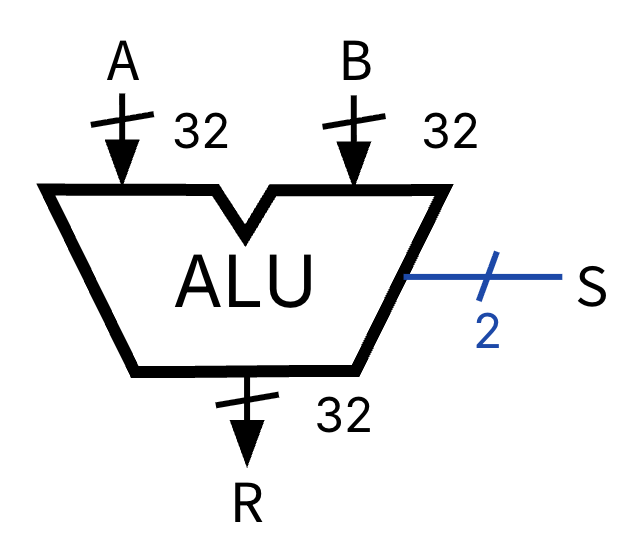

"TODO" — Figure 1:Basic ALU: ADD, SUB, AND, and OR

In our basic ALU, S is used to select R as one of the four operations:

\texttt{R} = \begin{cases} \texttt{A + B} & \text{when } \texttt{S} = 00 \\ \texttt{A - B} & \text{when } \texttt{S} = 01 \\ \texttt{A \& B} & \text{when } \texttt{S} = 10 \\ \texttt{A | B} & \text{when } \texttt{S} = 11 \\ \end{cases}

(1)

3ALU Circuit¶

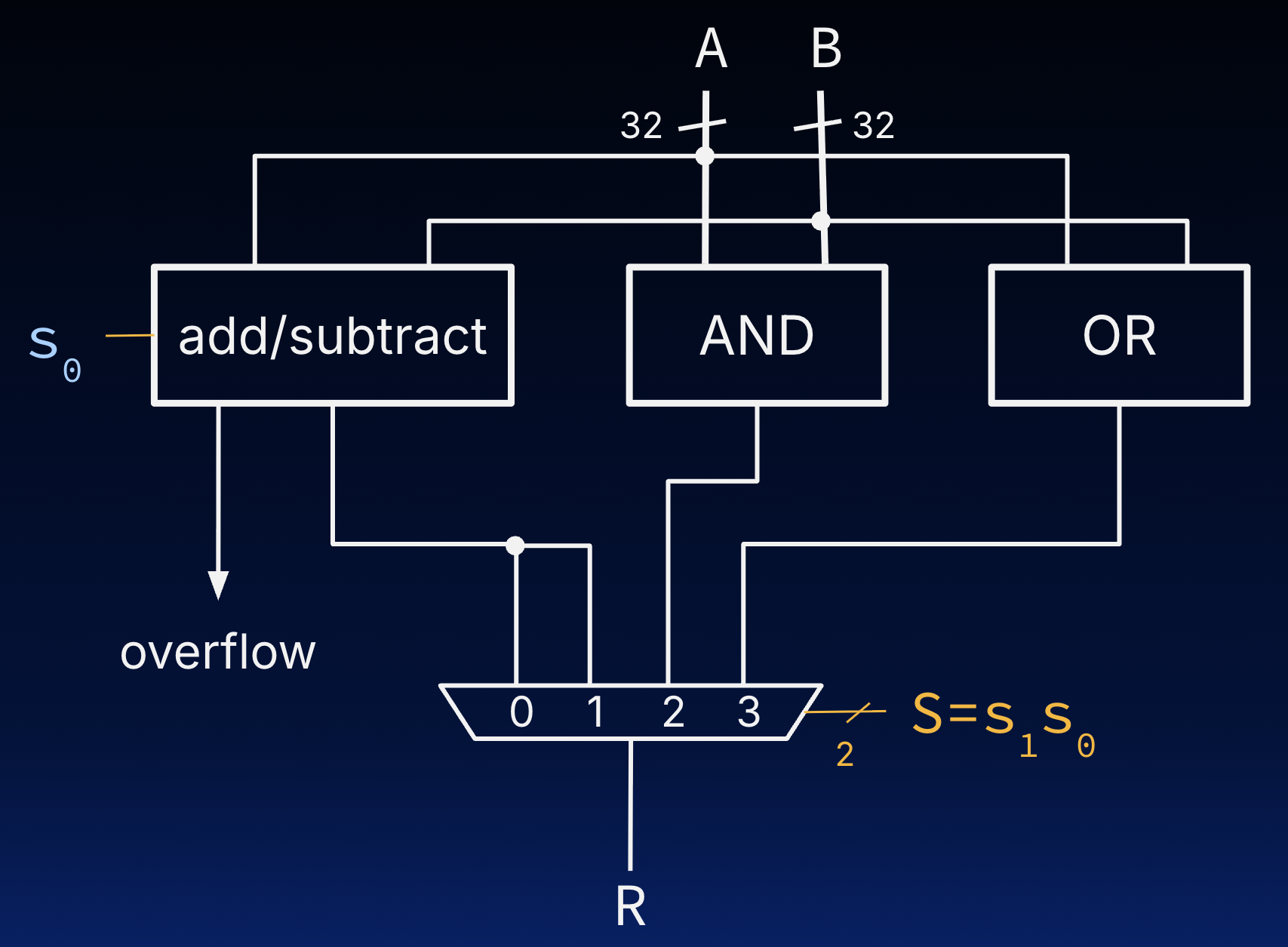

The internal design of our simple ALU is shown in Figure 2:

For our simple ALU we will need an add/subtract block, an AND block, and an OR block. Each of these blocks will take two 32-bit inputs and produce a 32-bit output. Read more about implementing these blocks below.

More Explanation

The high bit of S ( $s_1$ ) and the low bit of S ( $s_0$ ) are used to implement Equation (1):

$s_1=0$ : The add/subtract block
- $s_0=0$ : Specify add; note that $s_0$ is therefore used for both the MUX and the add/subtract block.
- $s_0=1$ : Specify subtract
$s_1=1$ : One of the AND or OR blocks
- $s_0=0$ : Specify AND
- $s_0=1$ : Specify OR

3.1Implementing the Internal Blocks¶

The logical operations as defined by the RISC-V ISA are bitwise operations.

AND: $r_i$ , is $a_i$ & $b_i$ , for the $i$ -th bits of the output R, A, and B, respectively. Perform this bitwise operation as a collection of 32 AND gates, where each AND gate is responsible for one of the 32 resultant bits.
OR: Similarly, the OR block is a collection of 32 OR gates.
The add/subtract block is a significantly more complex block than the AND or OR blocks; its design is the subject of the next section. For now, we note that a subtractor circuit is very similar to an adder, hence why we provide a single circuit that is capable of either operation.

case of the AND, the resultant bit ri is generated as ai AND bi. The circuit to perform this operation is simply a collection of 32 AND gates. Each AND gate is responsible for one of the 32 resultant bits. Similarly, the OR block is a collection of 32 OR gates.
