Supporting Loads and Stores

1Learning Outcomes¶

• Implement a datapath that supports loads (I-Type) and stores (S-Type).

• Explain why certain control signals can be marked as “don’t care” (*).

• Implement partial loads and stores for the course project, and gain a basic understanding of the minimum requirements for the DMEM block.

2Building a Processor with DMEM access¶

Recall that load instructions are I-Type because they read a register, have an immediate, and write to a register a 32-bit value read from memory.

To support lw, we use a similar datapath to addi but instead compute an address with which to access DMEM.

• RegFile: We read one register rs1 and write one register rd. The value to write is a word read from memory.

• PC: We read from and write to PC. The value to write is PC + 4.

• DMEM: We read the memory word at address R[rs1] + imm.

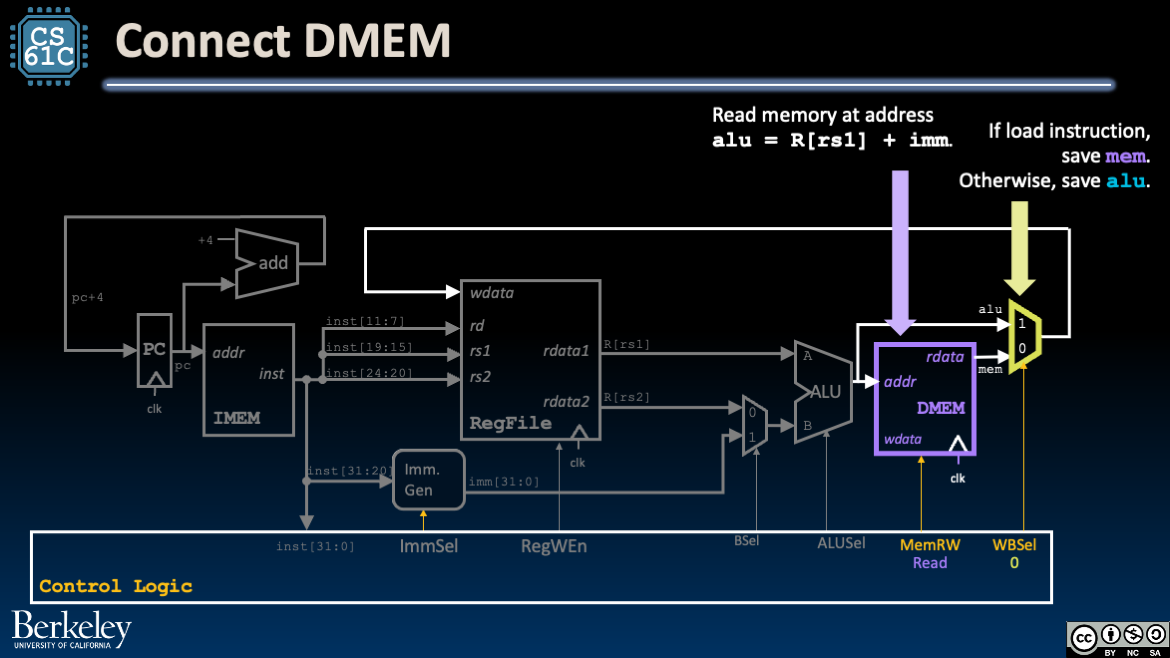

Loads (and stores) participate in the MEM phase of the five step process. We therefore introduce additional logic connecting DMEM to the ALU and the RegFile, as shown in Figure 1:

DMEM: To read the memory at an address, we use the ALU to compute the address as alu = R[rs1] + imm. This readily reuses the circuitry for arithmetic and logical I-Type instructions.

Mux: We now include a mux after the ALU and DMEM that uses the control signal WBSel to select between two values for wdata, the data to write to R[rd]:

• Arithmetic and Logical R-Type or I-Type instructions: The output of the ALU (alu), which is now wired both into addr and into the new mux.

• Load instructions: The output of DMEM (mem).

1. Instruction Fetch: Increment PC to next instruction (see R-Type datapath).

2. Instruction Decode: Fetch R[rs1] from RegFile, build the immediate imm for I-Type instructions (see I-Type datapath). Also configure control logic:

   • Configure ImmSel to I-type immediates.

   • Set RegWEn to 1.

   • Set BSel to 1.

   • Set ALUSel to Add.

   • Set MemRW to Read.

   • Set WBSel to 0.

   After some delay, the immediate generator block updates its output signal imm to the appropriate sign-extended 32-bit immediate value, register value R[rs1] is read, and control signals are set.

3. Execute: Because the control line BSel=1 selects the generated immediate imm for ALU input B, our ALU computes R[rs1] + imm.

4. Memory: Read memory at address alu = R[rs1] + imm. After some delay, the output signal mem has the value Mem[R[rs1] + imm].

5. Write Back: Write DMEM output to the destination register by connecting the output of the WBSel mux to RegFile’s wdata input.

   Around the next rising clock edge, wdata, RegWEn, and rd should be held stable through setup and hold time of RegFile.

3Tracing the Store Datapath¶

By contrast, store instructions, by contrast, are S-Type because they read two registers, have an immediate, and write to memory. Stores do not write data to registers.

We do not need to add additional blocks for stores, but we will need to:

• Upgrade the Immediate Generator to support immediates in S-Type instructions; we encourage you to read that section afterwards.

• Wire R[rs2] to wdata (DMEM input signal).

1. Instruction Fetch: Increment PC to next instruction (see R-Type datapath).

2. Instruction Decode: Fetch R[rs1] and R[rs2] from RegFile, and build the immediate imm for I-Type instructions (see I-Type datapath). Also configure control logic (see below).

3. Execute: Because the control line BSel=1 selects the generated immediate imm for ALU input B, our ALU computes R[rs1] + imm.

4. Memory: Write memory at address alu = R[rs1] + imm by holding addr and wdata (DMEM input).

   Around the next rising clock edge, wdata (DMEM input), MemRW, and addr should be held stable through setup and hold time of RegFile.

5. Write Back: (We don’t write to RegFile, so skip this.)

4Partial Loads and Stores: Course project details¶

This section discusses how to implement partial loads and stores. The details in this section are specific to the course project. We start by introducing additional functions of the course project’s DMEM block.

Recall from an earlier section that according to the RISC-V standard, loads and stores of words should specify word-aligned addresses. DMEM memory accesses in this course (and in the course project) therefore follow the following conventions:

• All DMEM memory accesses are word accesses. Addresses must be 32-bits wide and a multiple of 4.

• Loads read a word (4 bytes) at a time.

• Stores write at most 4 bytes at a time, specified by a bitmask.

Consider Figure 4, which shows each byte in memory, referred to by its 32-bit address.

• In a single access, DMEM can access a set of 4 bytes in one of the red boxes in the diagram, e.g., bytes at memory addresses 0-1-2-3 or 12-13-14-15.

• In a single access, DMEM cannot access a set of 4 bytes across two red boxes in the diagram, e.g., bytes at memory addresses 13-14-15-16. This would take two accesses.

4.1Word-aligned DMEM¶

• DMEM forces memory accesses to be with addresses of multiples of 4 bytes. DMEM always zeros out the bottom 2 bits of any address you provide (i.e., round down to the nearest multiple of 4), and then accesses 4 bytes starting at this modified address.

  For example, if you give DMEM the address 19 = 0b010011, DMEM will zero out the bottom 2 bits to get 16 = 0b010000, and then start at this modified address to access 4 bytes (16-17-18-19).

  You don’t need to zero out the bottom 2 bits yourself--the provided DMEM implementation will automatically do this for any address you provide.

• Assume memory accesses in instructions do not cross word boundaries. All instructions should follow RV32I standard convention and will not cross a word boundary in memory (i.e., a single access will never cross a red line in Figure 4).

  • All lw and sw instructions will use memory addresses that end in 0b00 (i.e. are a multiple of 4).

  • All lh, lhu, sh instructions will use memory addresses that end in 0b00, 0b01, or 0b10 (never an address that ends in 0b11^[1]).

  • All lb, lbu, sb instructions use any memory addresses.^[1]

• DMEM uses only the lower 16 bits. Due to Logisim size limitations, the memory unit only uses the lower 16 bits of the provided address, discarding the upper 16 bits. This means that the memory can only store 2¹⁶ bytes of data.

  The provided tests will always set the upper 16 bits of addresses to 0, and any tests you write should avoid using the upper 16 bits when interacting with memory.

• Partial Stores: See the section below for partial-store-specific details, e.g., unit tests.

4.2Partial Load¶

The partial_load.circ circuit in the course project is designed to take the 32 bits of data read from DMEM, extract the relevant data, then process the data to put into a 32-bit register. The signals for this subcircuit are in Table 1.

Behavior: For loads, DMEM will always read 32 bits of memory starting at an address that is a multiple of 4 bytes. The partial load subcircuit then uses the instruction itself to determine what bytes to extract.

Example 1. Suppose we had a lb instruction on address 6 = 0b000110.

• DMEM will read the 4 bytes at addresses 4-5-6-7.

• We want just the byte at address 6 (again, a lb instruction).

• The bottom 2 bits of the address 6 are 0b10, so we want the 2nd byte (zero-indexed, i.e., bits 16-23) of the data read from DMEM.

Example 2. Suppose we had a lh instruction on address 9 = 0b001001.

• DMEM will read the 4 bytes at addresses 8-9-10-11.

• We want the two bytes at addresses 9-10 (again, a lh instruction).

• The bottom 2 bits of the address 9 are 0b01, so we want to start extracting at the 1st byte (zero-indexed) and extract two bytes, i.e., bits 8-23 of the data read from DMEM.

4.3Partial Store¶

The partial_store.circ circuit in the course project is designed to take data from a register, process it, and store the relevant bytes to memory. The signals for this subcircuit are in Table 3.

Behavior: For stores, DMEM will write bitmasked data to memory at an address that is a multiple of 4 bytes. Each bit in the 4-bit write-mask MemWriteMask corresponds to the 4 bytes of the word; if a bit in MemWriteMask is 0, DMEM will not store the corresponding byte of DataToMem to memory.

Example 1: Suppose we had a sb instruction on address 3 = 0b000011.

• Of the word’s byte addresses 0-1-2-3, we actually want to just write one byte at address 3, because the bottom 2 bits of the address 3 are 0b11 (and it is an sb instruction).

• Make a 32-bit value where bits 24-31 are the 8 bits we want to store to memory.^[3]

• Make a 4-bit writemask 0b0001, which says to only write the zeroth byte to memory, leaving the other bytes in the memory word unchanged.

Example 2: Suppose we had a sh instruction on address 2 = 0b000010.

• Of the word’s byte addresses 0-1-2-3, we actually want to write two bytes at addresses 2 and 3, because the bottom 2 bits of the address 2 are 0b10 (and it is an sb instruction).

• Make a 32-bit value where bits 16-31 are the 16 bits we want to store to memory.^[3]

• Make a 4-bit writemask 0b1100, which says to only write the second and third bytes to memory, leaving the other bytes in the memory word unchanged.

Note that sh and sb instructions specify data as the lower bits of a 32-bit value, i.e., bottom 16 bits and bottom 8 bits, respectively. See Table 4.

Tips/reminders for the course project:

• Recall that we should not write when our instruction is not a store. When MemWEn control signal is 0, MemWriteMask should be set to 0b0000.

• The bytes in DataToMem that aren’t being written to the file (i.e. where MemWriteMask is 0) can technically be any value^[3], but Table 4 lists them as 0s in the table. The unit test for this part also assumes that those bytes will be 0.
