Memory Hierarchy, Principle of Locality

1Learning Outcomes¶

• Define key components of the memory hierarchy: processor, caches, memory, disk.

• Explain how caches leverage temporal and spatial locality.

• Trace memory access with caches.

• Get familiar with key cache terminology: cache hit, cache miss, and cache line (i.e., block).

2The Memory Hierarchy, Revisited¶

We now continue our earlier discussion of memory hierarchy. Earlier, we assumed there were only two layers of our memory hierarchy: registers (on the CPU) and memory (DRAM is close, but on a separate chip).

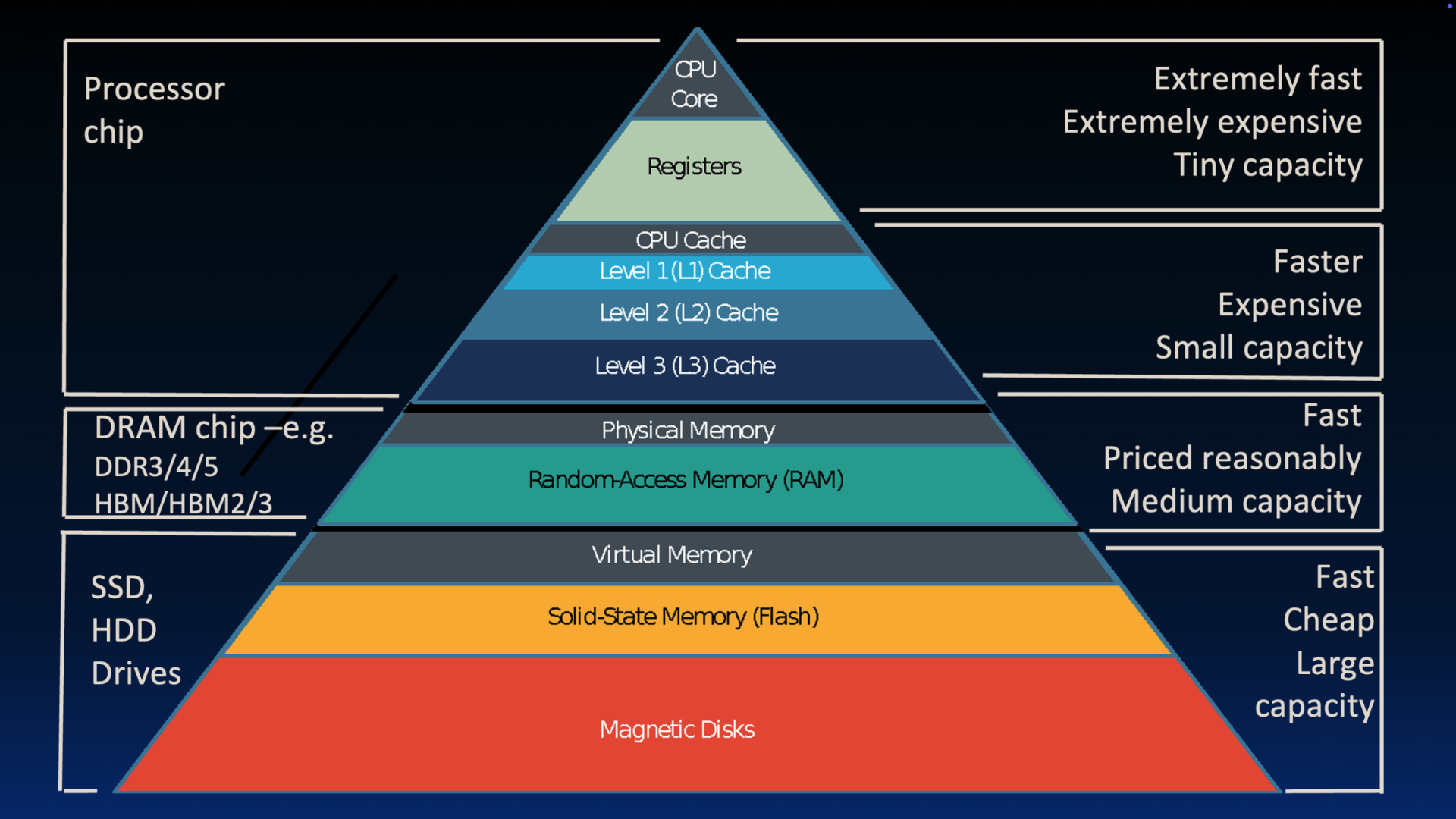

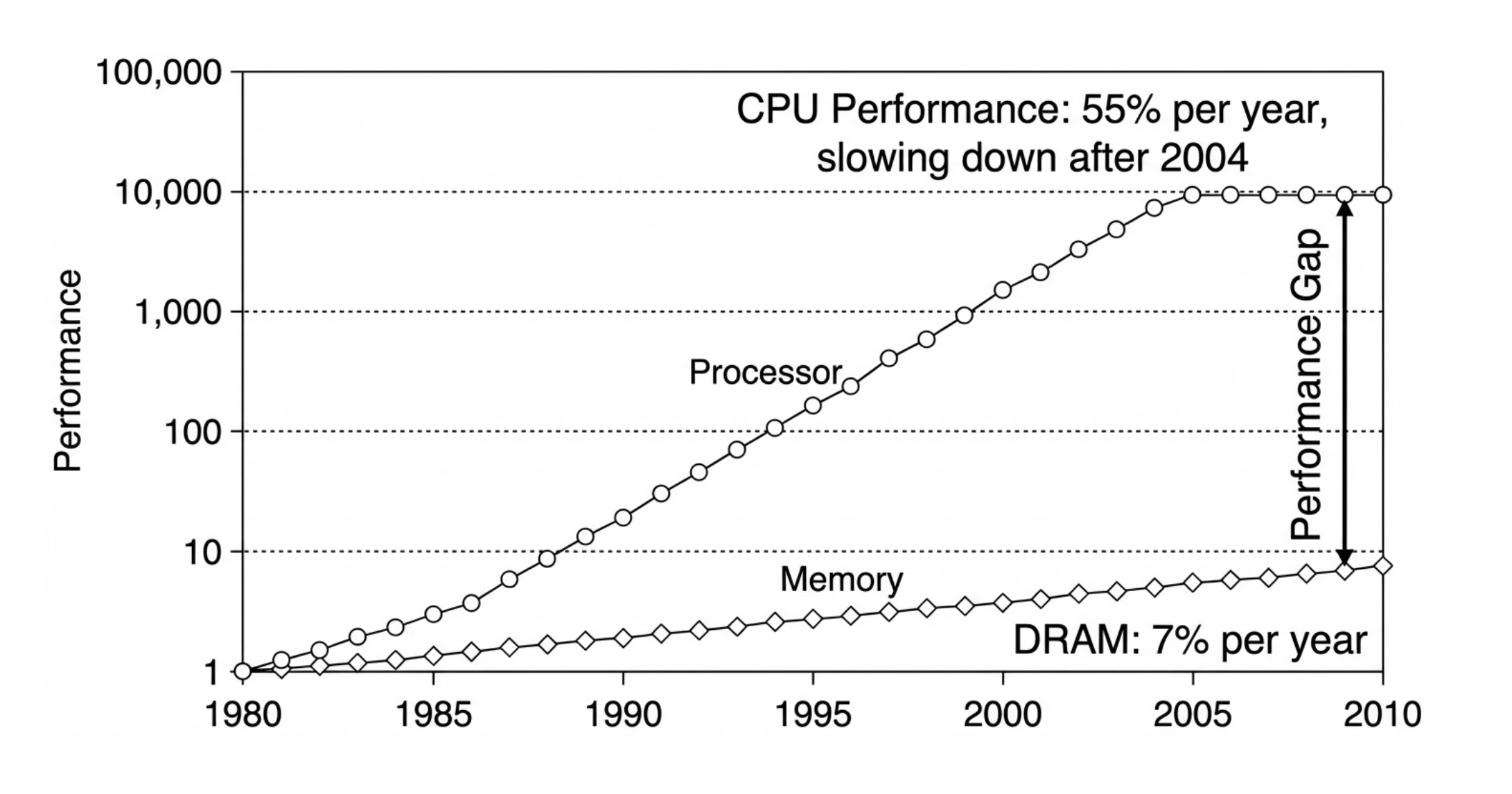

The mismatch between processor and memory speeds (the “careful tango” described earlier leads us to add a new level: The memory cache, or cache for short. Caches are usually on the same chip as the CPU and fit into the memory hierarchy as follows:

• Size: Smaller than memory, but certainly larger than the 32 registers on our RISC-V processor.

• Speed: Use hardware that is much faster than DRAM (used for main memory), but slower than registers.

• Cost: Use hardware that is more expensive than DRAM.

There are additional levels lower than main memory: disk is a huge one (literally). Just as the cache contains a copy of a subset of data in main memory, main memory contains copies of data on disk.

Data moves differently between different levels of the memory hierarchy:

• Registers and memory: Managed by the compiler. Loads and stores move data in and out.

• Cache and memory: Managed by cache controller hardware. We will describe the high-level operation, but leave the implementation to a later course.

• Memory and disk: Managed by the operating system and special hardware via virtual memory, a concept that we will discuss later.^[1] Additionally managed by the programer/user via files and file streams.

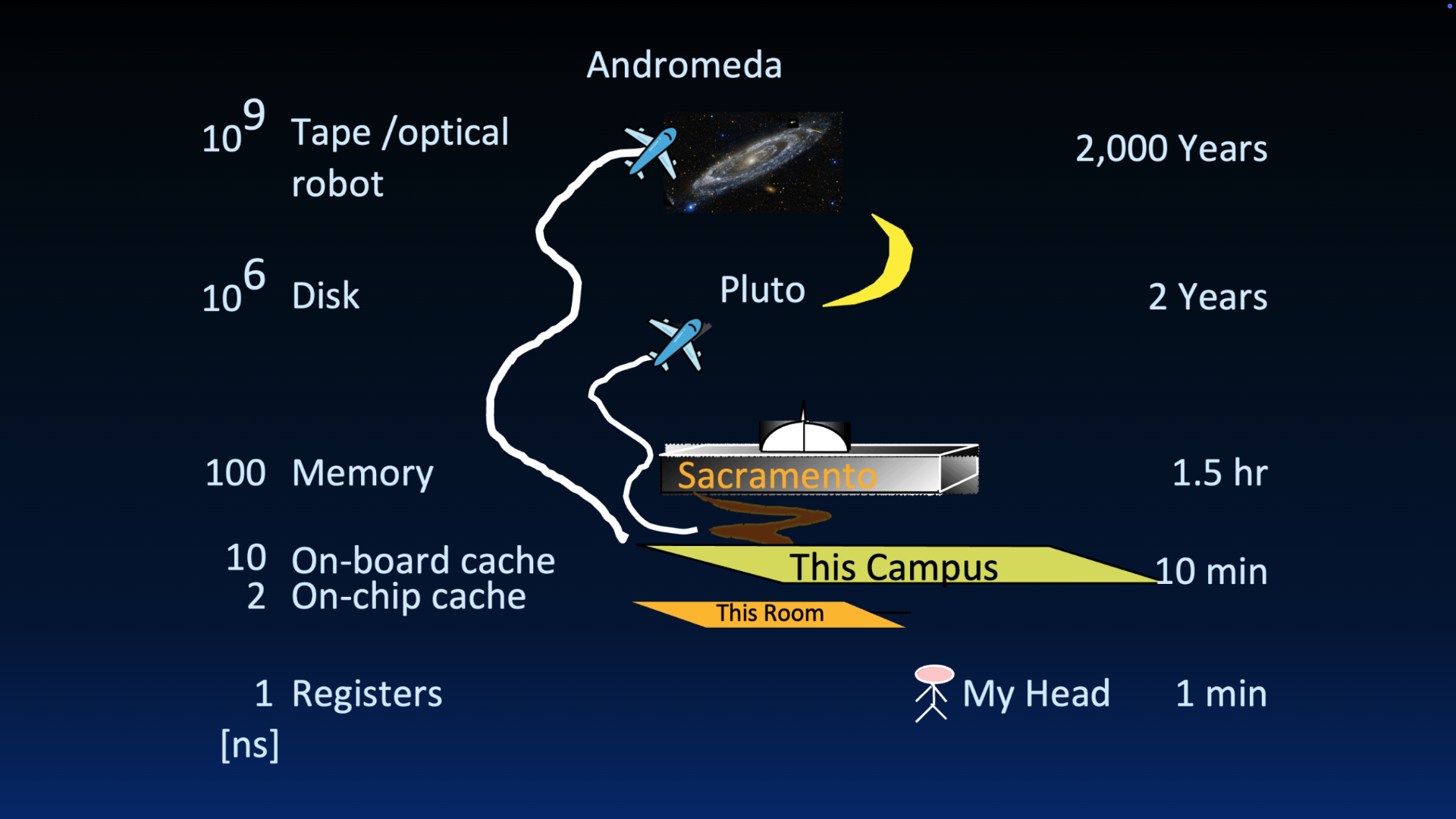

If useful, we revisit Jim Gray’s analogy of data access time on registers, on the cache, in main memory, and on disk.

2.1Multi-Level Caches¶

You may have noticed that the memory hierarchy diagram contains multiple caches labeled Level 1, Level 2, and Level 3. A computer can have multiple caches, where each cache is a copy of data from lower in the memory hierarchy.

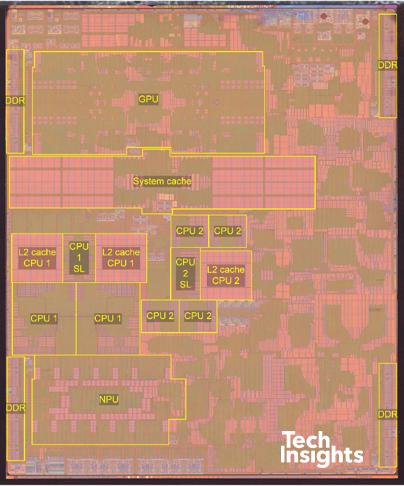

Consider Apple’s A14 bionic chip, which we introduced earlier:

The L1 cache is The L2 cache is located on the integrated circuit, often adjacent to the CPU. The System Level Cache labeled in the diagram is likely a Level 3 cache, shared across multiple CPU cores.^[2]

1. L1 cache (L1$^[3]): Usually directly embedded on the CPU, hence why it is not labeled in the above diagram.

   • Size: Tens or hundreds of KiB.

   • Hit Tim (see below): Complete in one clock cycle or less.

   • Miss rate (see below): 1-5%

2. L2 cache (L2$): Located on the integrated circuit, often adjacent to the CPU.

   • Size: Tens or hundreds of MiB.

   • Hit Time: Few clock cycles

   • Miss rate: 10-20%

2.2Demo¶

To find out the sizes of different components of the memory hierarchy on a Linux-based machine, we can use df and sysctl. The following commands were run on a Mac OS X machine.

To determine disk size, use df. The default display is in blocks (e.g., lines); use the -h option for IEC prefixes (base-two), and the -H option for base-10 prefixes.

$ df -h
Filesystem        Size    Used   Avail Capacity iused ifree %iused  Mounted on
/dev/disk3s1s1   460Gi    17Gi    38Gi    31%    427k  395M    0%   /
devfs            215Ki   215Ki     0Bi   100%     744     0  100%   /dev
...
$ df -H
Filesystem        Size    Used   Avail Capacity iused ifree %iused  Mounted on
/dev/disk3s1s1    494G     18G     40G    31%    427k  395M    0%   /
devfs             220k    220k      0B   100%     744     0  100%   /dev
...

To determine cache size and memory size, use sysctl. Because this command lists all attributes of the system kernel, we pipe the output through grep to get what we want. The default unit is bytes for memory and caches.

$ sysctl -a | grep hw.memsize
hw.memsize: 25769803776
hw.memsize_usable: 25143640064
$ sysctl -a | grep "hw.l.*size"
hw.l1icachesize: 131072
hw.l1dcachesize: 65536
hw.l2cachesize: 4194304

3Memory Caches¶

Caches are the basis of the memory hierarchy.

How do we create the illusion of a large memory that we can access fast? From P&H 5.1:

Just as you did not need to access all the books in the library at once with equal probability, a program does not access all of its code or data at once with equal probability. Otherwise, it would be impossible to make most memory accesses fast and still have large memory in computers, just as it would be impossible for you to fit all the library books on your desk and still find what you wanted quickly.

4Key Cache Terminology¶

Lines (also called blocks) of data are copied from memory to the cache.

Memory is byte-addressable, meaning each byte in memory has a memory address. This is identical to our concept of memory from earlier.

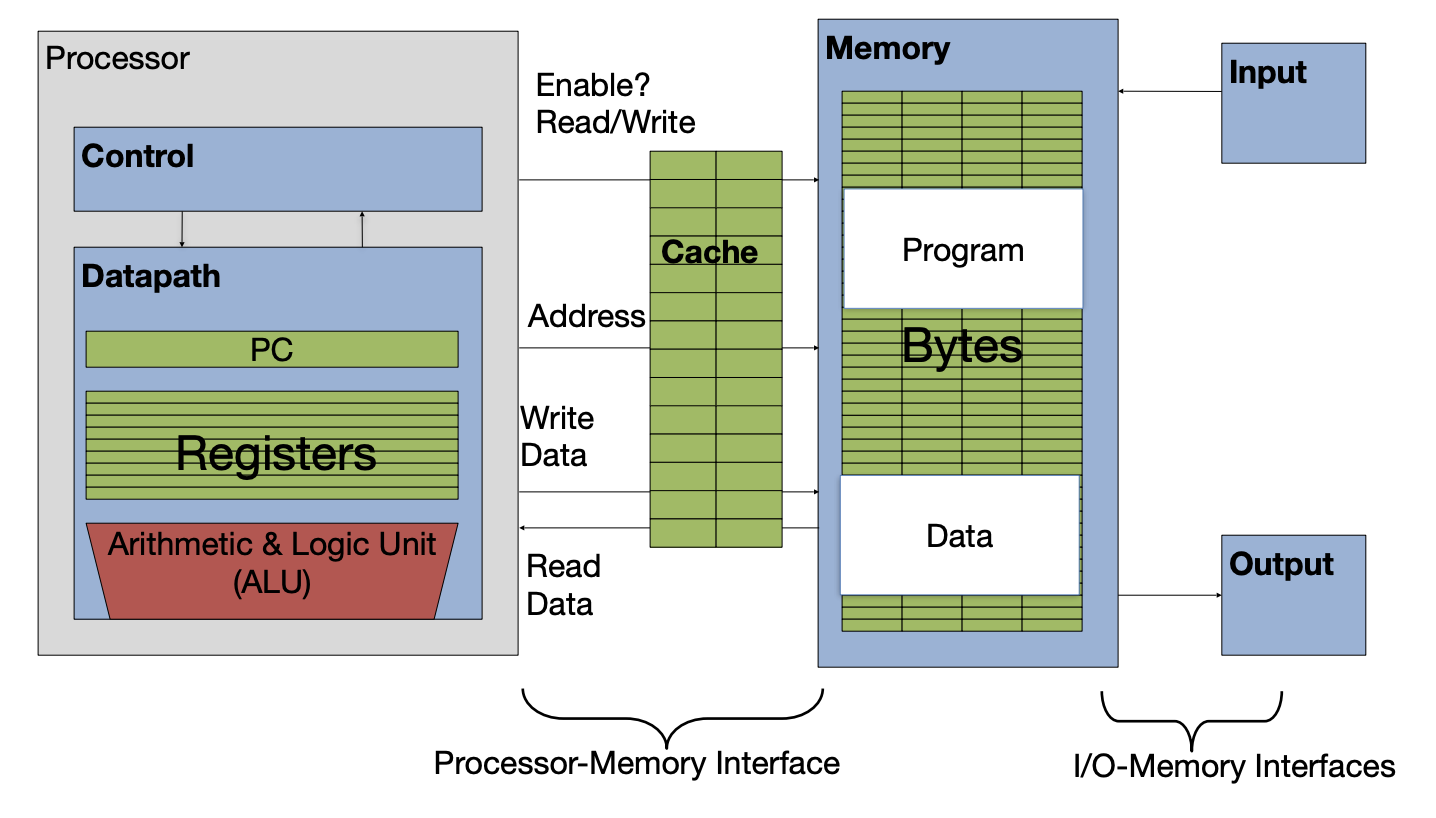

Consider how memory access works with a cache, as in Figure 1.

When a load or store instruction is accessed, memory data access is requested. There are two situations that can occur:

• Cache hit: The data you were looking for is in the cache. Retrieve the data from the cache and bring it to the processor.

• Cache miss: The data you were looking for is not in the cache. Go to a lower layer in the memory hierarchy to find the data, put the data in the cache. Then, bring the data to the processor.

5Storage¶

Written version coming soon!
