In an earlier section, we explained why hardware costs make fully associative caches rather uncommon in modern processors. We now introduce the other end of the spectrum policy: a direct mapped cache. With this new cache, we consider again the cache design policies and walk through an example.

2Placement Policy¶

3Identification¶

Consider our visualization for a 16B, direct-mapped cache with 4B blocks in Figure 1.

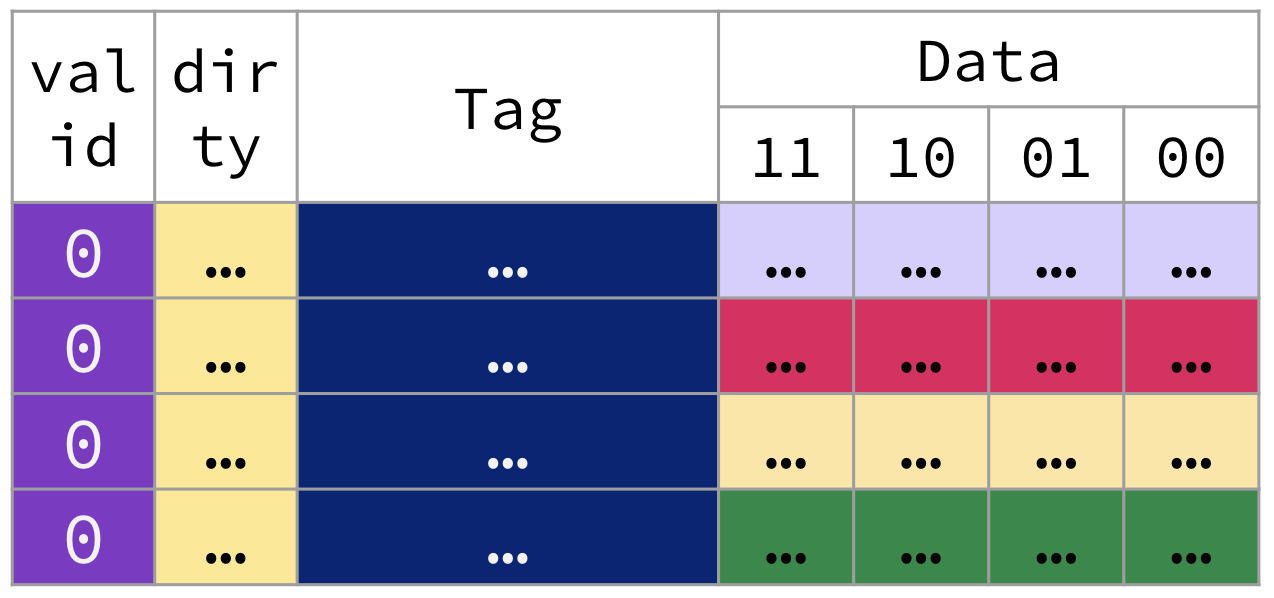

"TODO" — Figure 1:A cold snapshot of a 16B direct-mapped cache with 4B blocks and a dirty bit for write-back.

On the surface, the direct mapped cache looks very similar to that of our fully associative cache. We discuss how the direct mapped placement policy shortens the tag width and impacts the identification procedure to determine a cache hit.

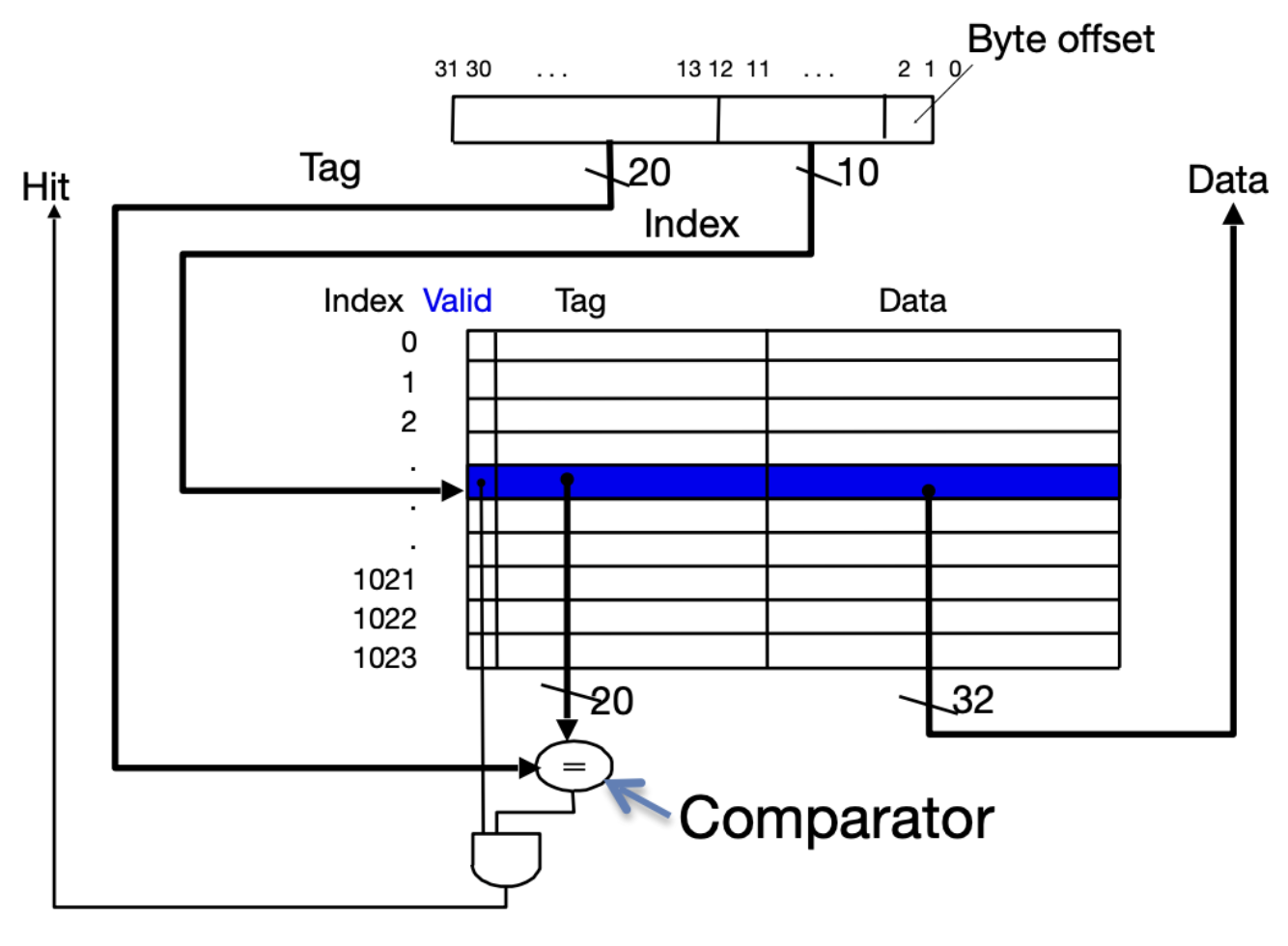

3.1Tag, Index, and Offset¶

The mapping of pretty much all direct-mapped caches is simple:

\text{(Block address) modulo (nunber of blocks in cache)}

Like before direct-mapped caches copy in data from memory at the granularity of blocks. The block address is the address of a cache block and, by definition, is the address of the (lowest significant byte of) block in memory. The lowest bits of the address therefore describe byte addresses within a block and are still defined as the offset.

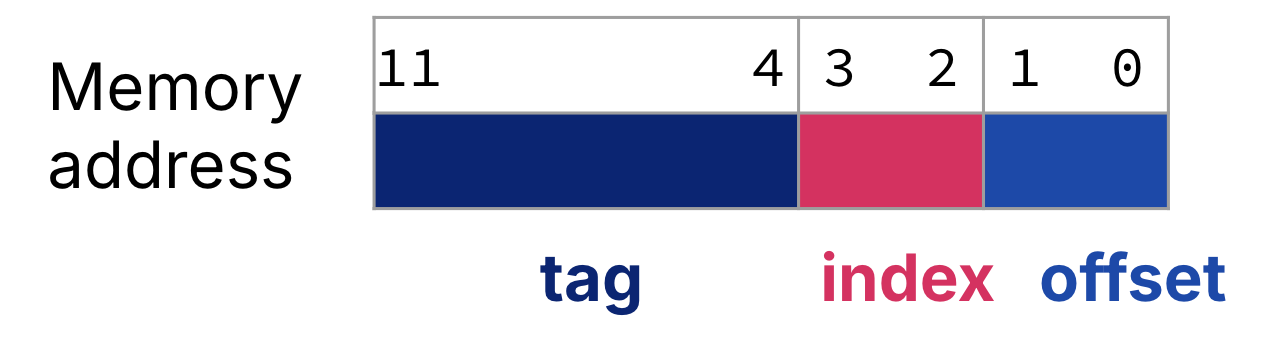

Now, we can connect the direct-mapped cache in Figure 1 to the 12-bit memory address in Figure 2.

In a direct-mapped cache, the tag is the upper bits of the address, excluding the bits for the index and the offset.
In a direct-mapped cache, the index is used to select the block.
In all caches, the offset is the portion of the address needed to describe the byte offset within a block. These are always the lowest bits of the address.
The block address is the tag concatenated with the index, with offset bits set to 0.

Solution

4 bytes.
16 bytes. Remember, data capacity.
The offset is still with respect to the block size. $\log_2{(\text{block size})}$ = 2 bits.
The index selects the entry of the cache. To index into each of the 4 entries of this cache, we need $\log_2{(\text{number of blocks})} = 2 bits.
The tag, like before, is the upper bits of the address—but now, it is the upper bits that are not captured by the index and the offset. Because we use a 12-bit memory address in our toy example, for this direct-mapped cache our tags are (# address bits) - (# index bits) - (# offset bits) = 8 bits.

4Replacement Policy¶

Show Answer

E. None of the above.

In direct mapped caches, there is only ever one block to replace—the existing block with matching index. LRU, most recently used, FIFO, and Random replacement would violate the placement policy of direct mapped caches.

5Write Policy¶

Show Answer

C. both A and B.

Direct mapped placement policy does not impact our choice of when writes to memory happen. Both write-through and write-back policies are possible.

6Walkthrough¶

The following animation traces through four memory accesses to a 12-bit address space on our 16B direct mapped with 4B blocks. Assume a write-back policy. Assume the cache starts out cold, like in Figure 1.

Figure 3:Warming up a direct mapped cache.

1. Load byte @ 0xFE2. Cache miss.

Address 0xFE2 in binary: 0b1111 1110 0010

Tag: 0b11111110, or 0xFE
Index: 0b00, or 0
Offset: 0b10

Cache Miss. The entry at index 0 has an invalid tag.
Access lower level of memory hierarchy. Load into cache entry 0 a block’s worth of data from memory starting @ block address 0xFE0 (0b1111 1110 0000). Write the tag 0xFE. Mark valid bit. Unset dirty b it.
Read. Read byte in cache block at offset 0b10 and return to processor.

2. Store byte @ 0x61C. Cache miss.

Address 0x61C in binary: 0b0110 0001 1100

Tag: 0b01100001, or 0x61
Index: 0b11, or 3
Offset: 0b00

Cache Miss. The entry at index 3 has an invalid tag.
Access lower level of memory hierarchy. Load into cache entry 3 a block’s worth of data from memory starting @ block address 0x61C (0b0110 0001 1100). Write the tag 0x61. Mark valid bit. Unset dirty bit.
Write. Write byte in cache block at offset 0b00. Set dirty bit.

3. Load byte @ 0x61B. Cache miss.

Address 0x61B in binary: 0b0110 0001 1011

Tag: 0b01100001, or 0x61
Index: 0b10, or 2
Offset: 0b11

Cache Miss. The entry at index 2 has an invalid tag.
Access lower level of memory hierarchy. Load into cache entry 2 a block’s worth of data from memory starting @ block address 0x618 (0b0110 0001 1000). Write the tag 0x61. Mark valid bit. Unset dirty bit.
Read. Read byte in cache block at offset 0b11 and return to processor.

4. Load byte @ 0xCAD. Cache miss.

Address 0xCAD in binary: 0b1100 1010 1101

Tag: 0b11001010, or 0xCA
Index: 0b11, or 3
Offset: 0b01

Cache Miss. While the entry at index 3 is valid, its tag 0x61 does not match the provided tag 0xCA.
Access lower level of memory hierarchy. The existing valid block at cache entry 3 must be replaced. Its dirty bit is set, so write this block to memory and replace it with a block’s worth of data from memory starting @ block address 0xCAC (0b01100 1010 1100). Write the tag 0xCA. Mark valid bit. Unset dirty bit.
Read. Read byte in cache block at offset 0b01 and return to processor.

Contrast this direct mapped cache walkthrough with the one for fully associative caches:

Identification of a cache hit occurs by checking exactly one tag: the tag at the indexed cache entry.
Memory accesses 2 and 3 create cache entries in cache entries 3 and 2, respectively; these cache entries share the same tag. However, the blocks in these entries have different block addresses.
Memory access 4 still incurred a cache miss even though the cache was not filled. The cache entry at index 3 was occupied by a block with a different tag.
